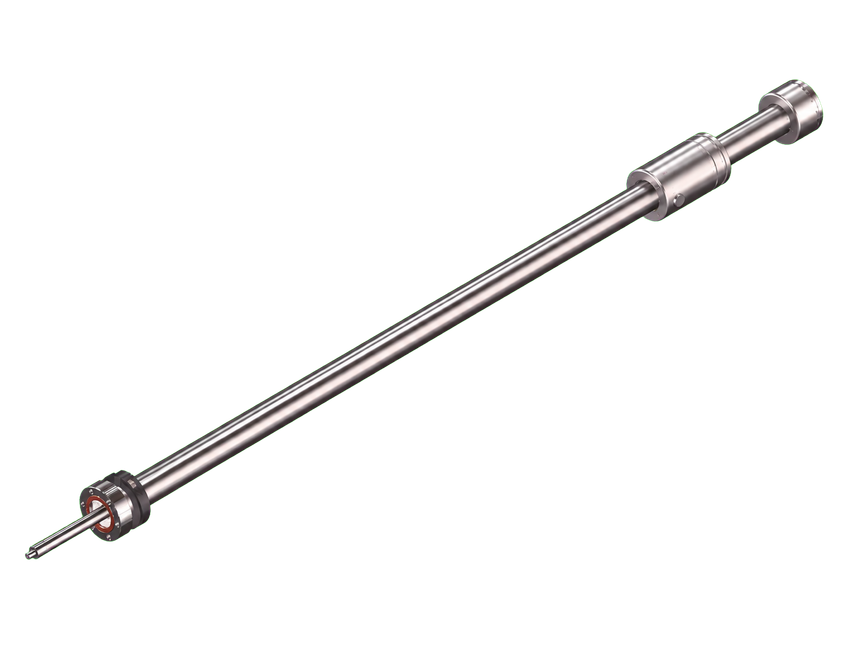

Manual Sample Transfer Rod
Direct manual control of linear and rotary sample transfer for HV and UHV applications.
OPKI / VACROD-YDirect manual control of linear and rotary sample transfer for HV and UHV applications.
Manual operation
Direct linear and rotary positioning through magnetic coupling.
HV and UHV variants
Select the vacuum version and interface to match your chamber.
Flexible installation
Configurable stroke and sample-holder connection for your transfer path.
Technical data
Select the configuration that fits your instrument.
| Product family | VACROD-Y |
|---|---|
| Actuation | Manual magnetic coupling |
| Motion | Linear and rotary |
| Stroke range | 100–1500 mm |
| Vacuum variants | HV and UHV |
| Bakeout temperature | HV: 80°C · UHV: 150°C |
| Rod-end interface | Ø8 mm g6 with flat and M4 tapped hole |
| Flange configurations | CF for UHV; additional HV interfaces on request |
Specifications depend on the selected configuration. Interfaces, operating conditions and final dimensions are confirmed during technical review.
Configurations & options
Specify your integration.
Request the technical datasheet and configuration-specific dimensional drawing for your application.
